HTRC Automatic Battery Charger 30A/20A for Lithium AGM GEL Lead-Acid LiFePO4 -Suitable for Car Motorcycle Consumer Electronics

HTRC Smart Battery Chargers: Efficient, Intelligent, and Portable

Upgrade your battery charging experience with the HTRC P30 and P20 PRO Smart Battery Chargers. Designed for fast, efficient, and safe charging, these chargers are perfect for various battery types including Lithium, LiFePO4, and Lead-Acid batteries. With intelligent control features and multiple protection mechanisms, HTRC chargers ensure your batteries are always charged optimally and safely.

Key Features:

1. Efficient Charging:

• High-Frequency Technology: Reduces charging time significantly, improving efficiency while preventing battery damage and prolonging battery life.
• Quick Charge: Yes, enabling faster charging cycles.

2. Intelligent Control:

• Auto Battery Identification: The charger automatically identifies the battery type and status, adjusting the charging process to avoid overcharging and undercharging.

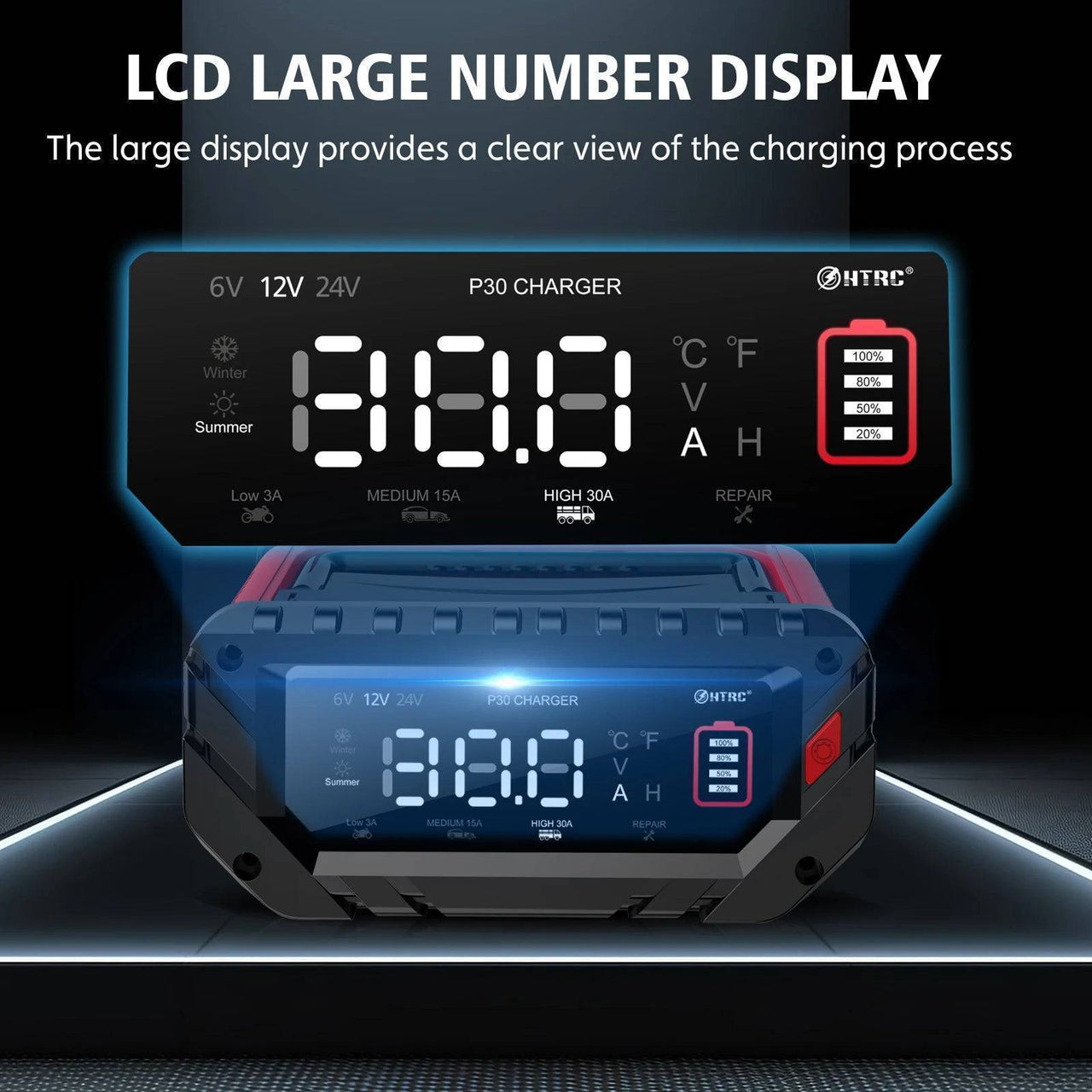

• Display Screen: Yes, for real-time monitoring and easy operation.

3. Multiple Protection Functions:

• Safety First: Features include overcharge protection, overcurrent protection, short circuit protection, and reverse connection protection to ensure safe charging.
• Intelligent Charge: Yes, with modes tailored to battery conditions and ambient temperature.

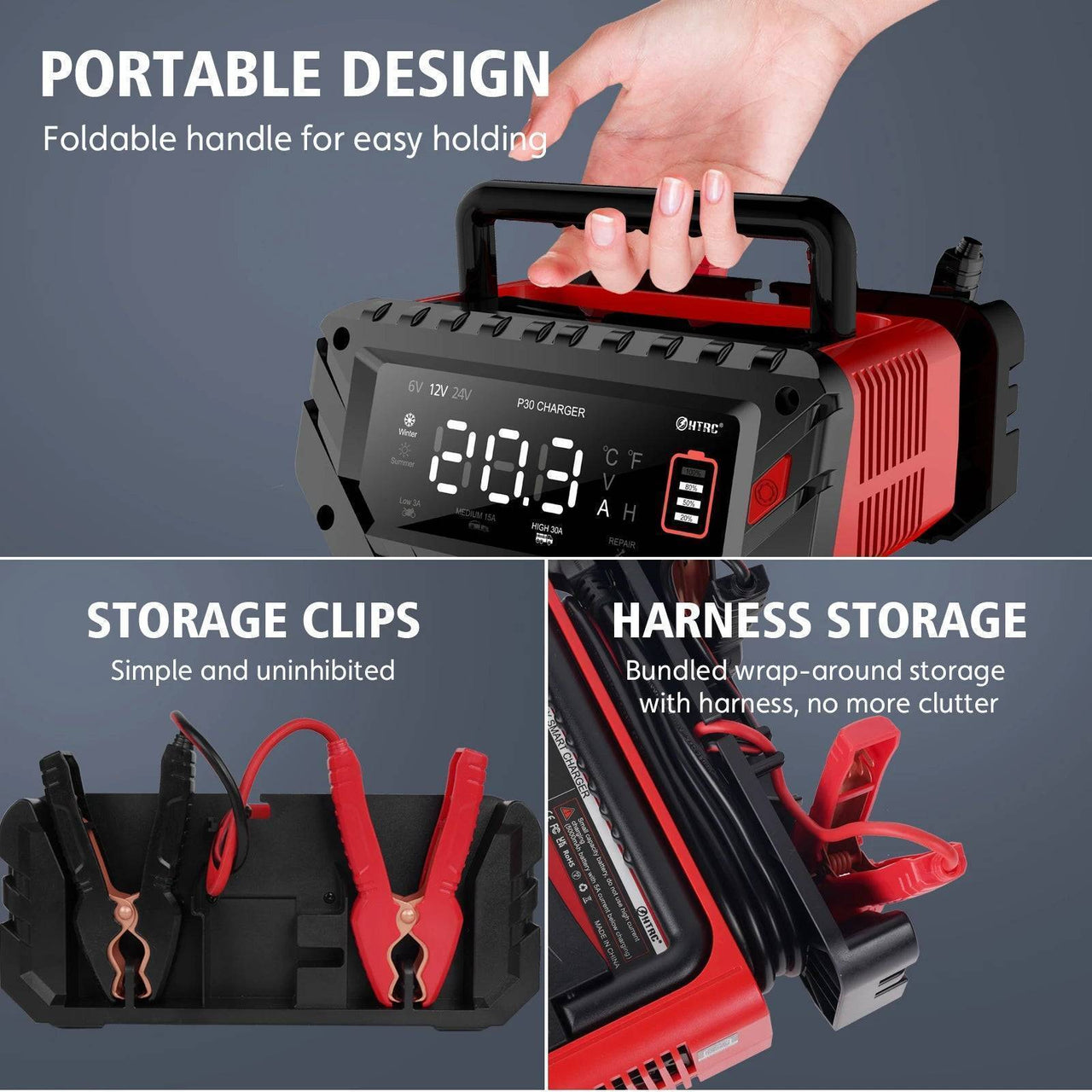

4. Portable Design:

• Easy to Carry: Compact and lightweight, perfect for various occasions and on-the-go charging needs.

Charging Process:

1. Plug in the Charger: Connect the smart charger to a power outlet.
2. Select Mode: Press the mode selection button to choose the appropriate charging mode.
3. Connect to Battery: Attach the charger’s output to the positive and negative terminals of the battery.
4. Automatic Charging: The charger will begin charging, automatically adjusting to the battery type and status.
5. Completion: The charger stops automatically when the battery is fully charged, at which point you can unplug it.

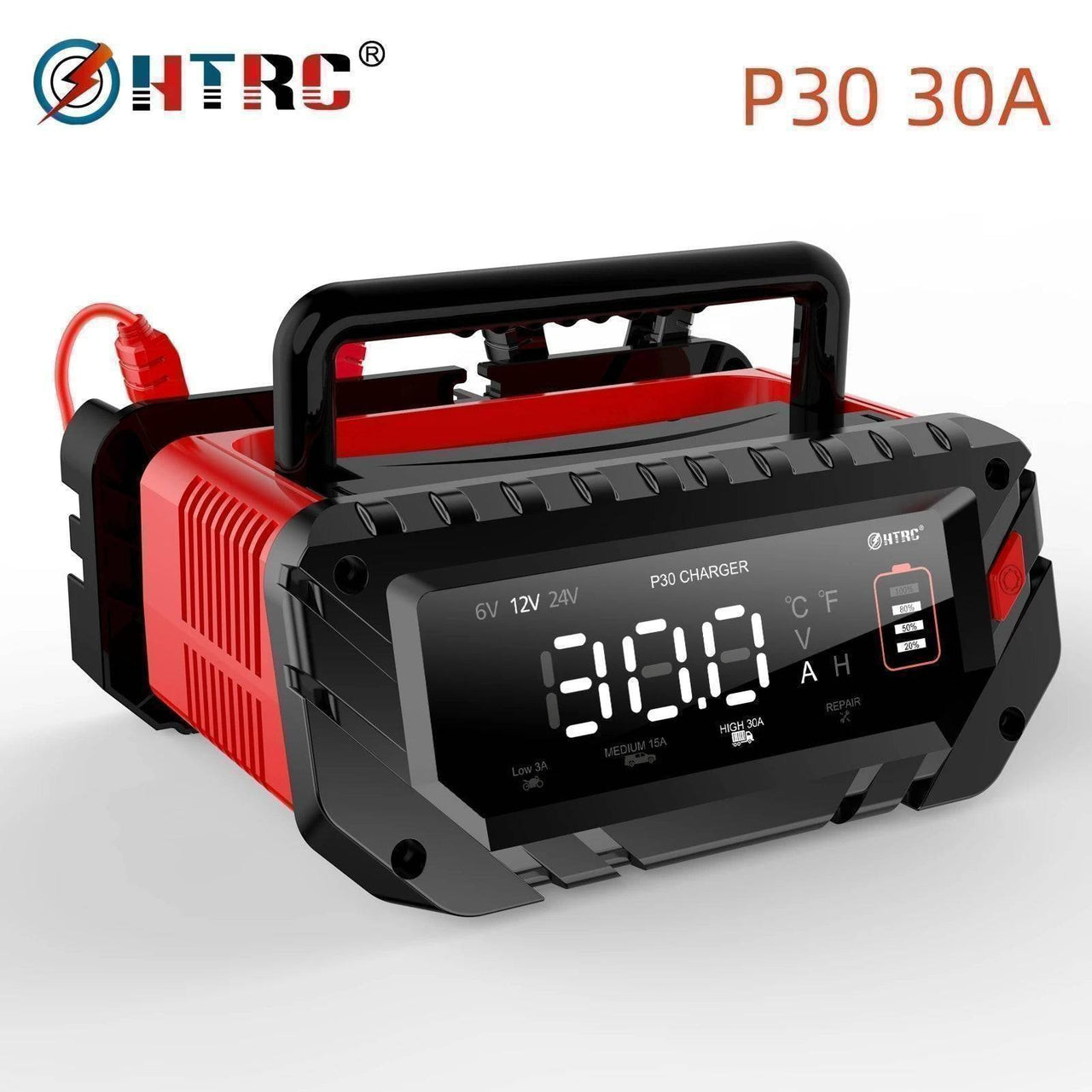

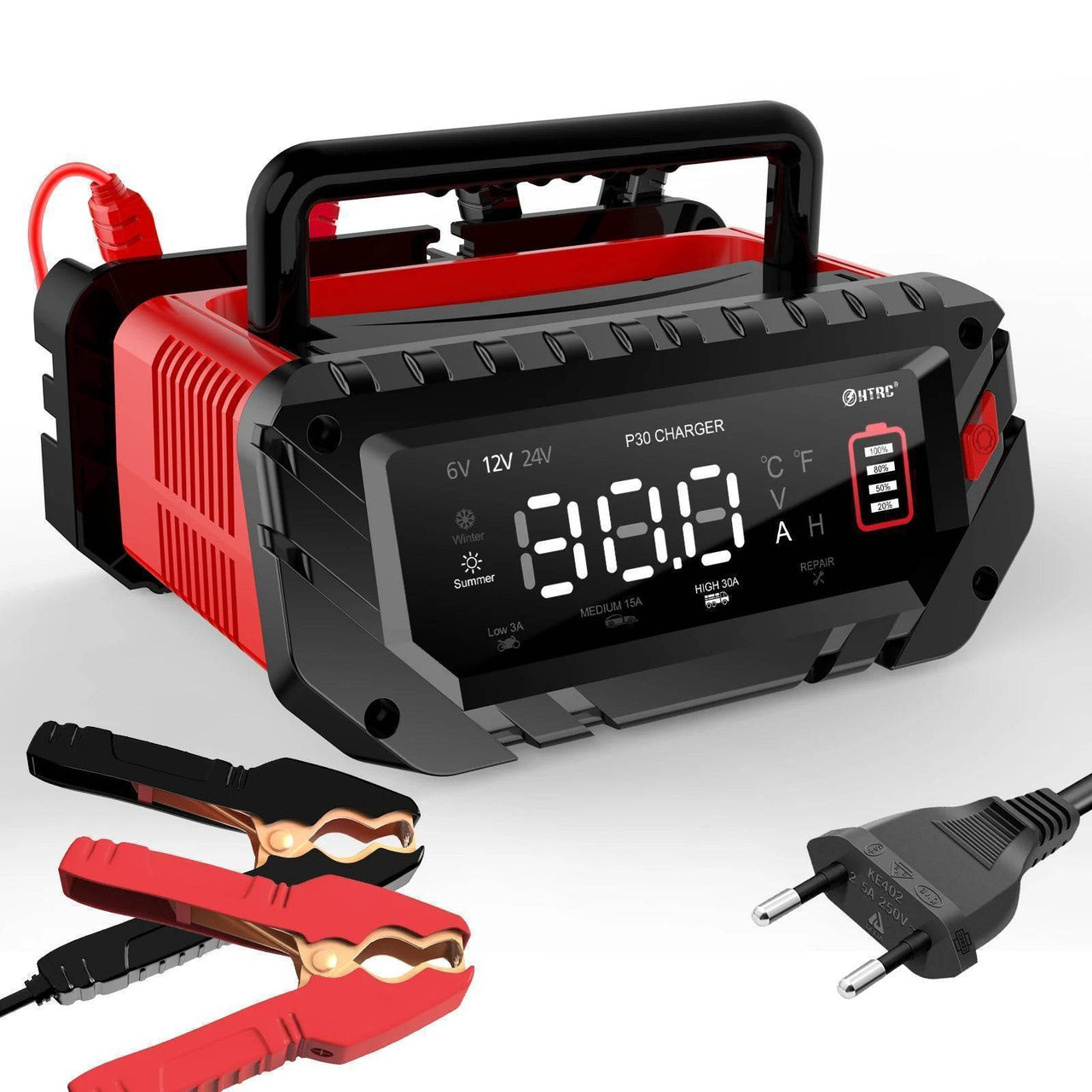

P30 30A Charger Specifications:

• AC Input Voltage: 100-240V~50/60Hz
• Input Power with Load: Max 420W
• Output Voltage: 6V/12V/24V
• Output Current:
  • Low: 6V/2A, 12V/3A, 24V/5A
  • Medium: 6V/5A, 12V/15A, 24V/10A

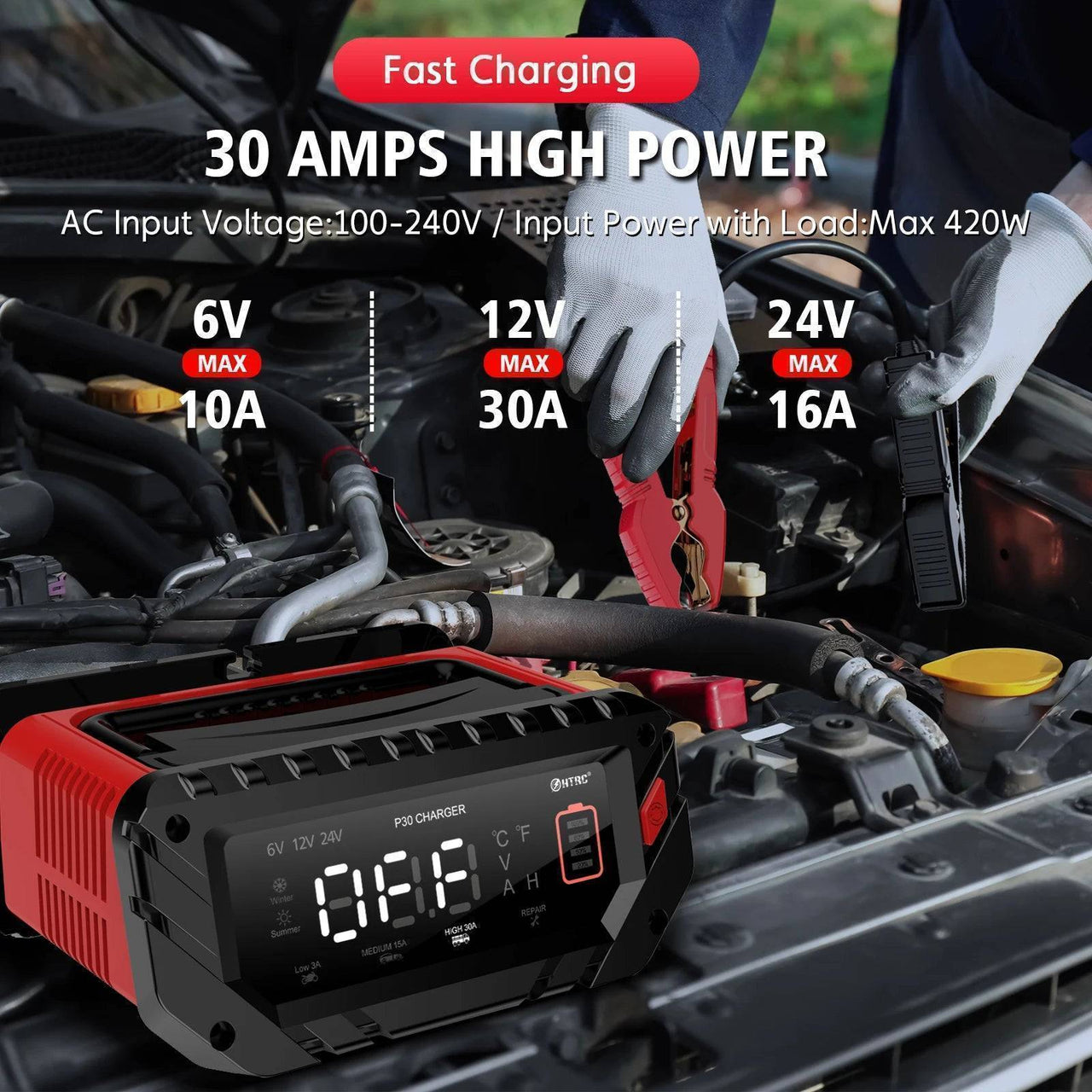

  • High: 6V/10A, 12V/30A, 24V/16A
• Battery Types Supported: Lithium, LiFePO4, Lead-Acid (AGM, GEL, SLA, Flooded, WET, EFB)
• Weight: Approximately 1.8 kg

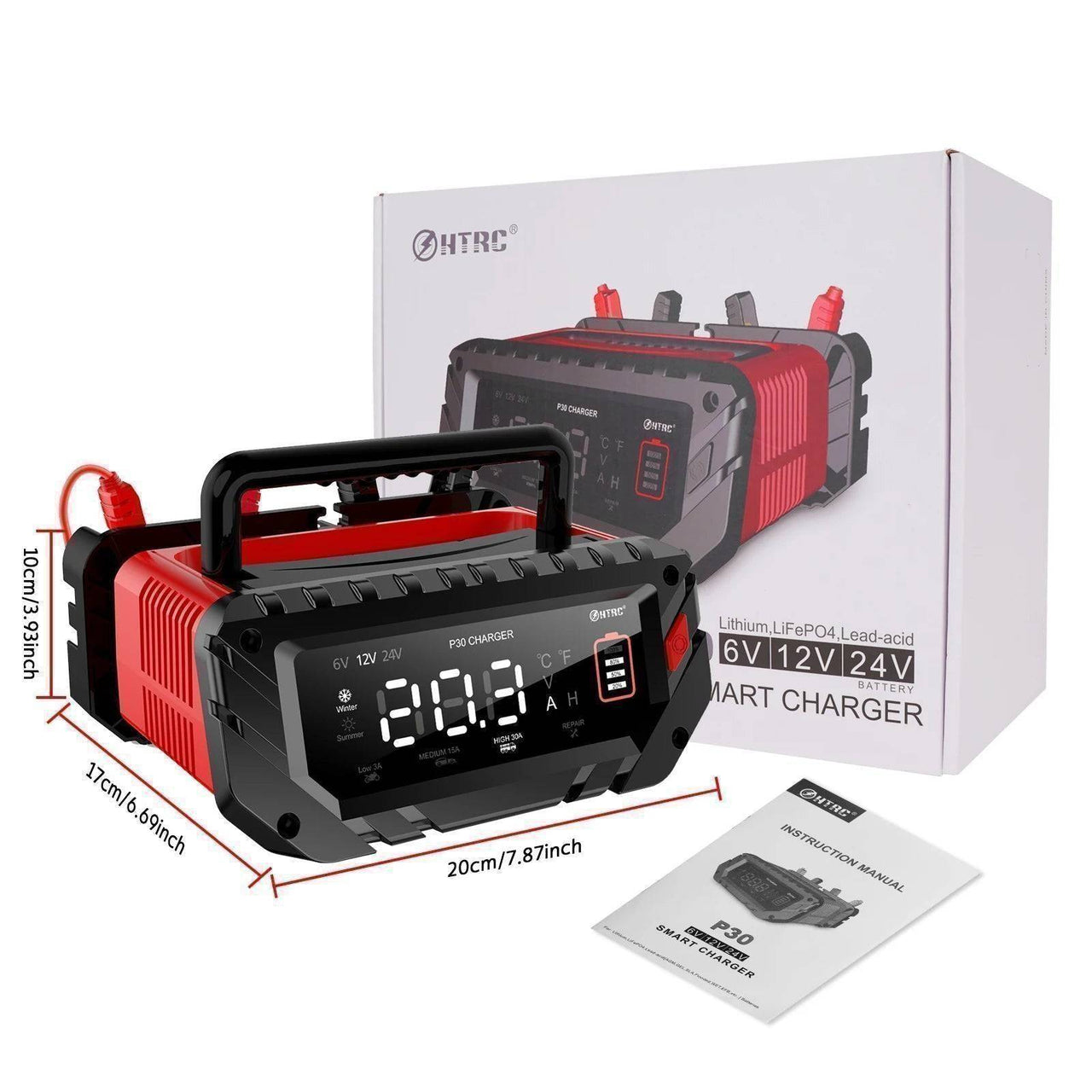

• Dimensions: 493215 cm, expanding to 493220 cm
• Features:
  • Battery voltage indicator
  • Temperature-based winter and summer modes
  • Repair mode and charging saturation state indicator

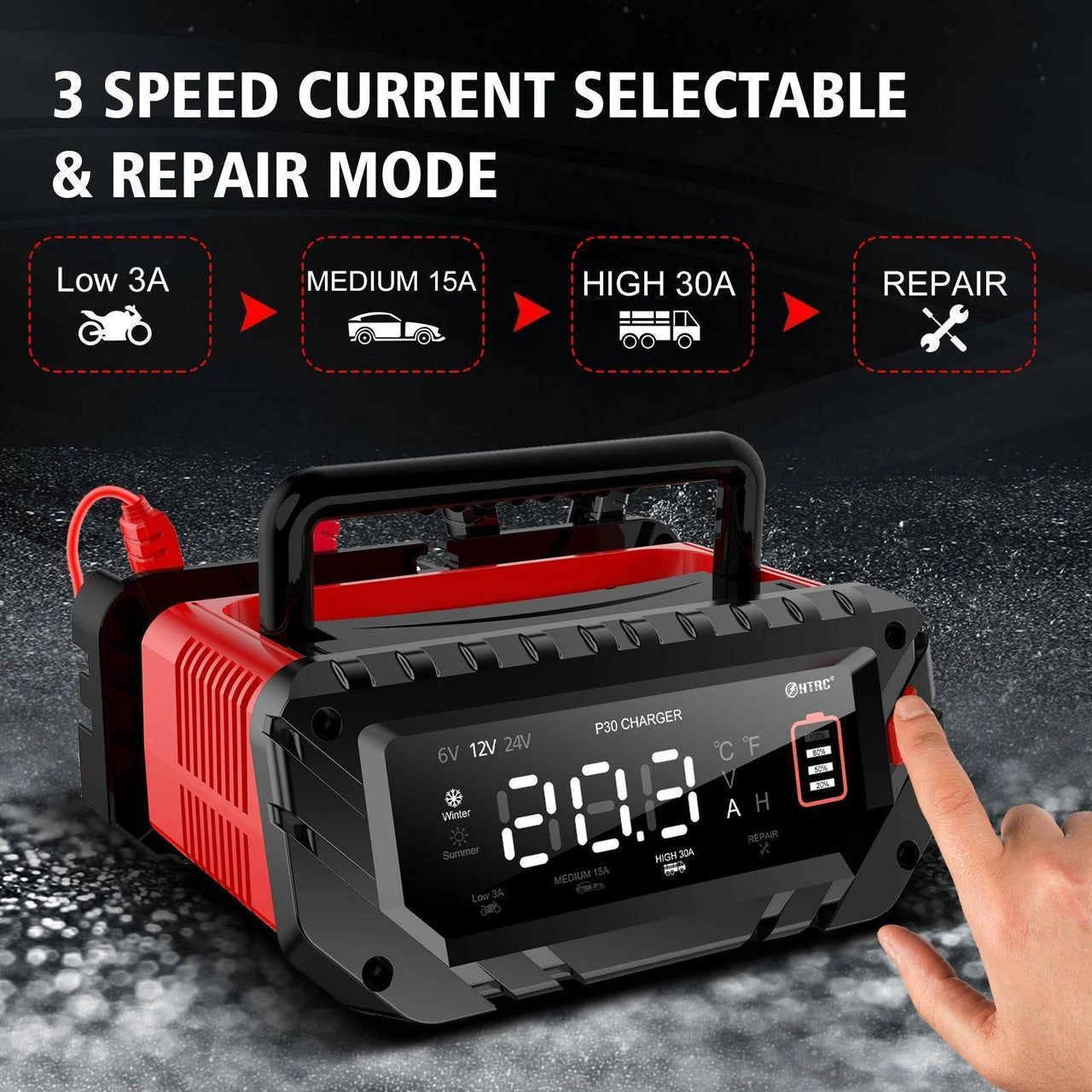

  • Multiple current charging modes

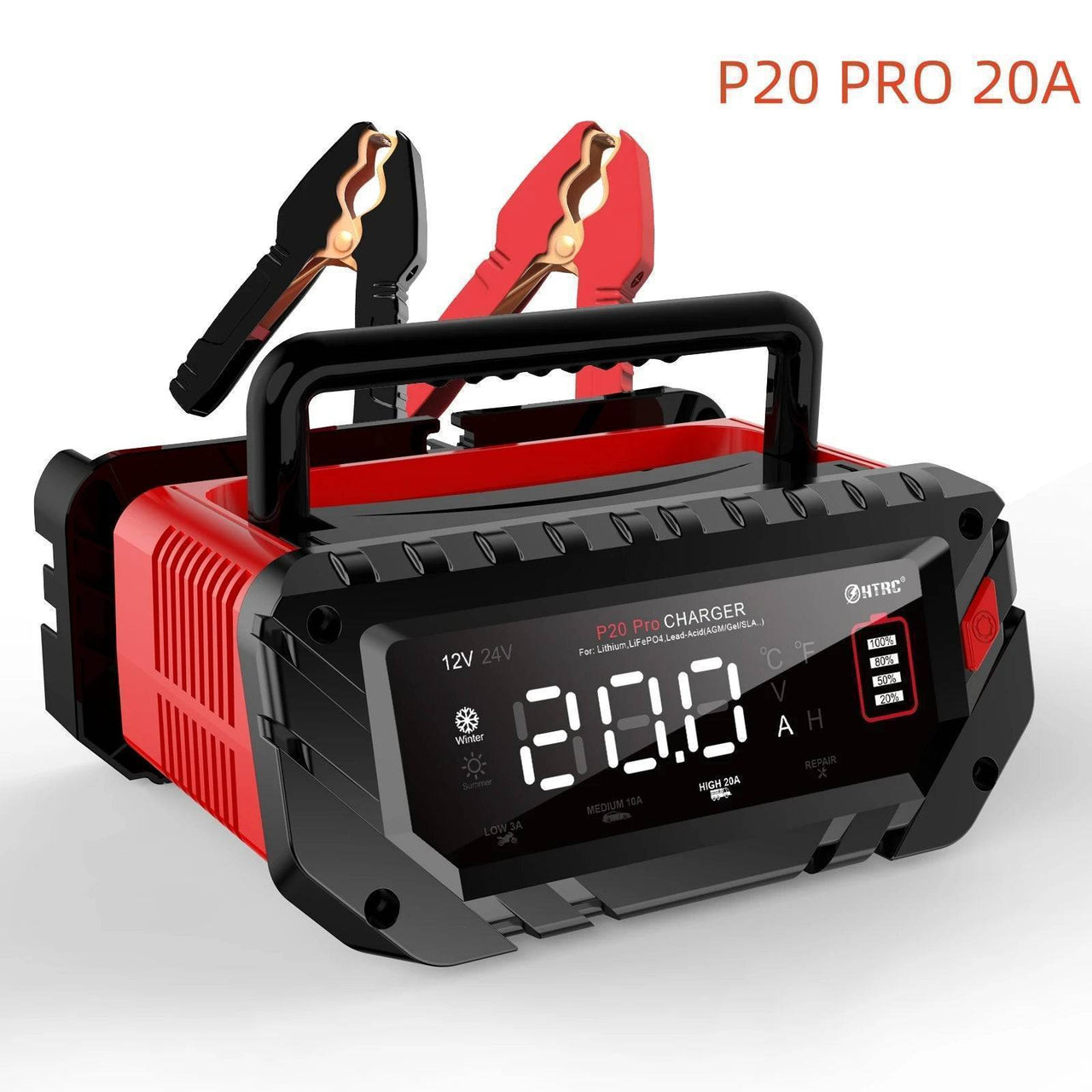

P20 PRO 20A Charger Specifications:

• AC Input: 100-240V~50/60Hz
• Output Voltage: 12V/24V
• Output Current: 12V/20A, 24V/10A
• No-load Output Voltage: 27.6V
• Minimum Starting Voltage: >7.0V
• Power Load: Max 240W
• Size: 158 x 90 x 50 mm (6.22 x 3.54 x 1.97 inches)
• Battery Types Supported: Lithium, LiFePO4, Lead-Acid (AGM, GEL, EFB, MF, FLOODED, VRLA, SLA, and Wet batteries)
• Weight: Approximately 1.5 kg

What’s Included:

• 1x Charger (20A or 30A, optional)
• 1x User Manual
• 1x Clip Line
• 1x AC Cable (EU/US/UK/AU, optional)

Why Choose HTRC Smart Chargers?

With HTRC, you get more than just a charger; you get a reliable, intelligent solution that caters to all your battery charging needs. These chargers are designed to ensure maximum battery life, safety, and convenience. Whether you need a quick charge or a comprehensive maintenance cycle, HTRC Smart Chargers are your best choice.

Order your HTRC P30 or P20 PRO Smart Battery Charger today and experience efficient, intelligent, and safe charging like never before!

P20 PRO 20A Show :
